LED Sheets

Flexible, Modular, and Brilliant — Adura’s LED Sheets deliver powerful backlighting in Single Color, RGB, RGBW, and Pixel formats for any creative or commercial lighting application.

Contact Us
LED Sheets Hero Image

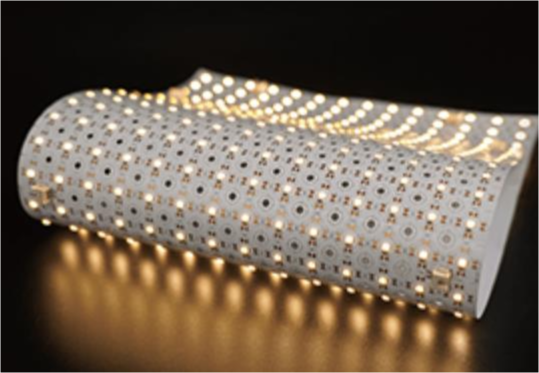

Single Color LED Sheet

Our flexible Single Color LED Sheets are designed for consistent and powerful illumination across large surfaces. Fully modular and cuttable, they provide an efficient lighting source for signage, architectural accents, and retail displays. Ideal for static lighting needs where reliability and simplicity are key.

COB Strip Image

Seamless Brightness Across Surfaces

High LED density and optimized spacing ensure smooth, uniform light output with no hot spots or dark zones.

Modular and Cuttable for Custom Fit

Each sheet includes precise cut lines and modular segments for easy adaptation to complex or irregular layouts.

Reliable, Static Illumination

Engineered for dependable, long-term lighting in static installations with minimal maintenance requirements.

Model Specifications

Product Dimensions (mm2) Voltage LEDs/Sheet Color Temperature Power (W/m) Efficiency (Lm/W) Cuttable Length (mm)
ADSL7-SHEETS-392 480*240 24V 392 2700-6500K 32 80(@4000K) 17.1*17.1mm
ADSL7-SHEETS-784 784 83(@4000K)

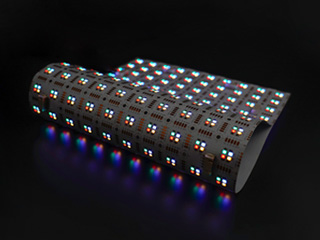

RGB/RGBW LED Sheet

Adura’s RGB and RGBW Flexible LED Sheets bring vibrant and customizable lighting to your projects. These sheets support dynamic color changes and smart lighting control, making them ideal for experiential design, stage lighting, or ambient color effects. Modular and cuttable for perfect fit and flexibility.

Tunable CCT COB Strip Image

Dynamic Color Control

Supports RGB and RGBW outputs with compatibility for smart lighting systems, enabling vivid color transitions and effects.

Flexible, Modular Design

Cuttable and segmentable sheets allow seamless adaptation to unique layouts and custom installations.

Ideal for Creative Applications

Perfect for architectural lighting, retail displays, stage setups, and immersive environments needing interactive color.

Model Specifications

Product Dimensions (mm2) Voltage LEDs/Sheet Color Temperature Power (W/m) Efficiency (Lm/W) Cuttable Length (mm)
ADSL7-SHEETS-800RGBW 480*240 24 800 RGBW 32 49 24*24

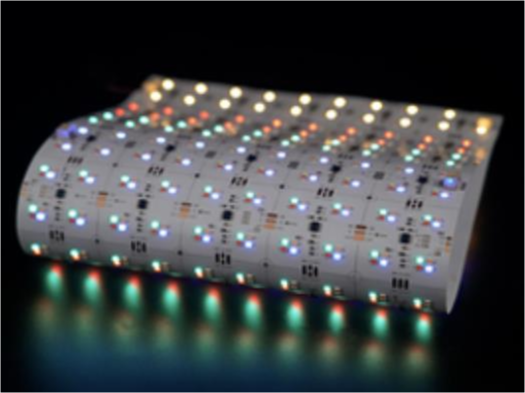

Pixel LED Sheet

Pixel LED Sheets from Adura offer the most advanced LED control in our lineup. These sheets use SPI control to deliver precise, addressable lighting in RGBW, allowing for animations, gradients, and dynamic effects. Perfect for digital signage, interactive displays, or entertainment lighting.

Pixel-Level COB Strip Image

Advanced Pixel Control

Adura Pixel LED Sheets use SPI protocol for precision-controlled, addressable lighting

Dynamic Lighting Effects

Supports RGBW animations, gradients, and interactive visual effects

Ideal for Visual Experiences

Perfect for digital signage, entertainment, and responsive displays

Model Specifications

Product Dimensions (mm2) Voltage LEDs/Sheet Color Temperature Power (W/m) Efficiency (Lm/W) Cuttable Length (mm)
ADSL7-PXSHEETS-800RGBW 48*240 24V 800 DIGITAL RGBW 48*48 50 SPI
